FD765-VTX F7 FC L431 65A BLHeli_32 4 в 1 VTX 3-6S укладки ESC для 180 мм-1000 мм Рамка комплект для радиоуправляемого дрона

Описание

FD765-VTX F7 FC L431 65A BLHeli_32 4 в 1 VTX 3-6 S укладка для 180 мм-1000 мм Рамка комплект

Особенности:
1. Изготовлен из высокоточной печатной платы, высокой чувствительности, долговечности и длительного срока службы.
2. Профессиональное производство, стабильные характеристики и высокая надежность.
3. Принять высокоточные платы для обеспечения стабильной передачи сигнала.

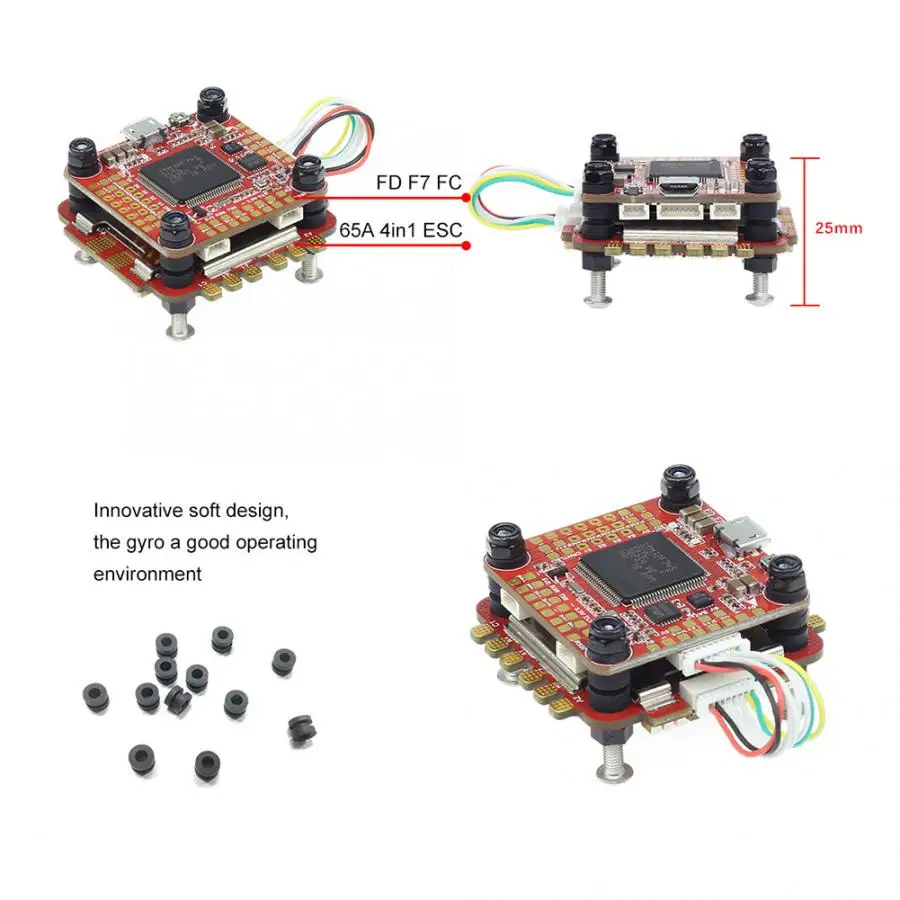

4. Инновационный мягкий дизайн, дает гироскопу хорошую операционную среду.
5. Легко установить и управлять, удобно использовать.
Параметры:
FD765-VTX F7 FC L431 65A BLHeli_32 4 в 1 VTX с диагональю экрана 3-6 S для штабелирования
Состояние на 100% абсолютно новый
Материал:Printed Circuit Board
Color: As Pictures Shown
Uses: For 180mm-1000mm Frame Kit
Weight: Approx. 48.2g
Optional Type: Inner Hole, Inner Pin

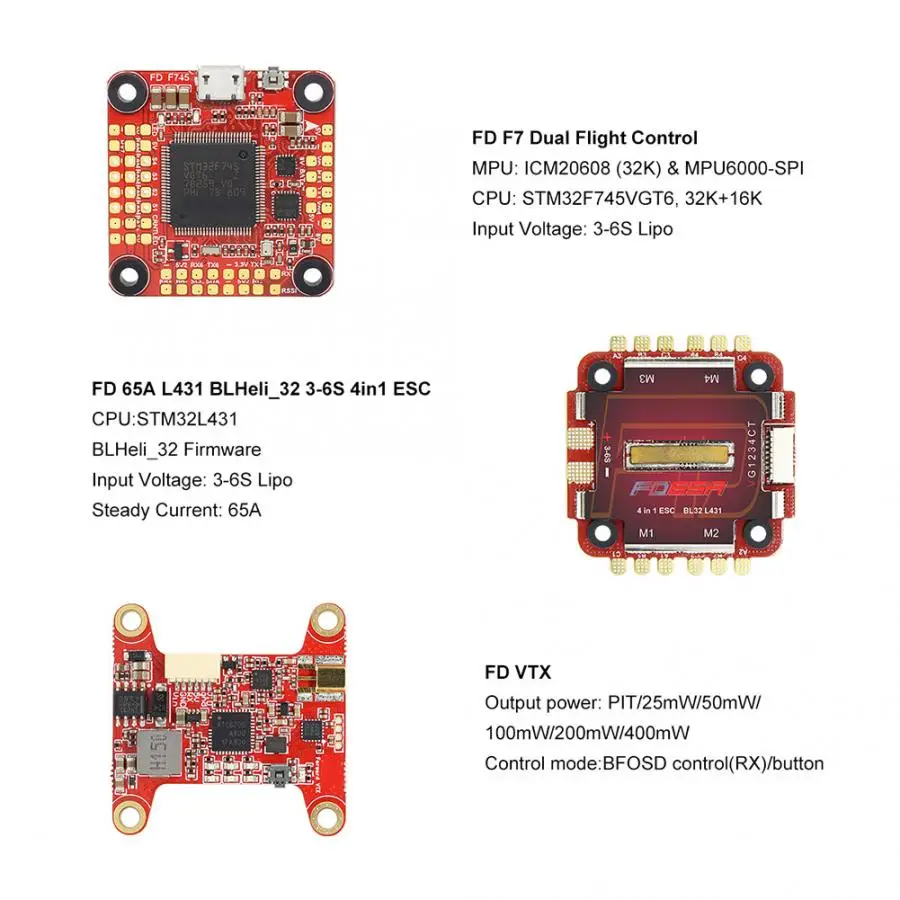

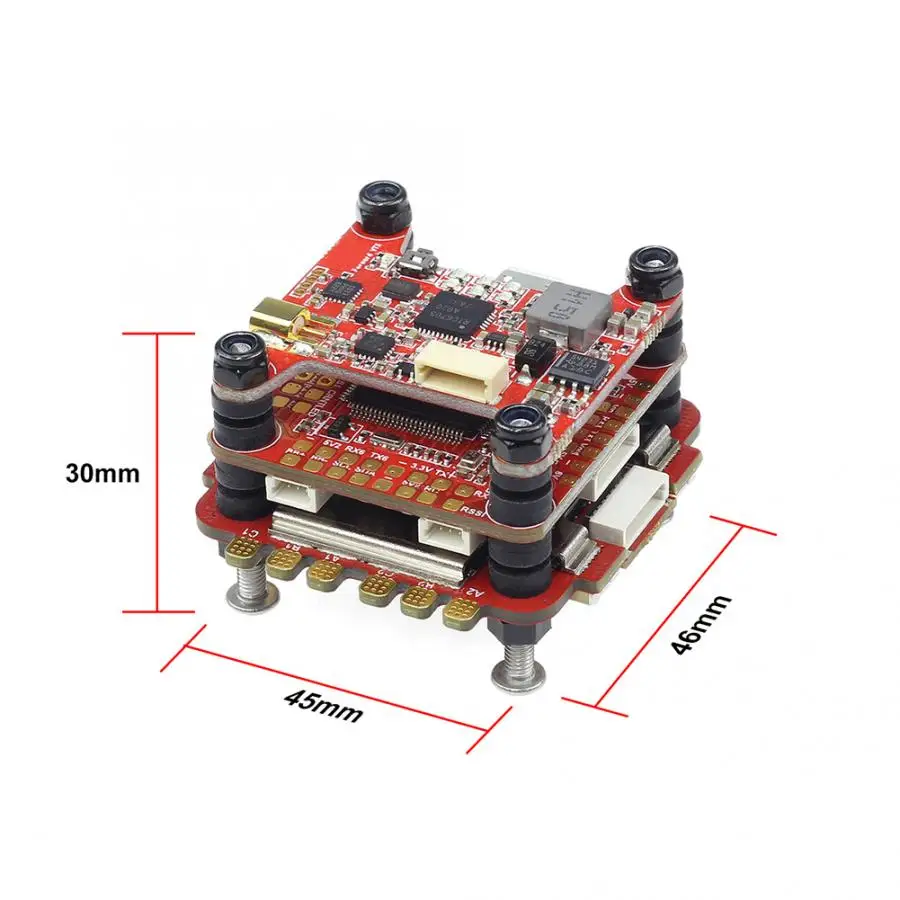

Product Name: FD765 STACK
FD F7 Dual Flight Control
MPU: ICM20608 (32K) And MPU6000-SPI
CPU: STM32F745VGT6, 32K + 16K
Input Voltage: 3-6S Lipo
Built-In Betaflight OSD Adjustable PID
BEC Output: 5V 3A, 8V 1.5A
LED Output: 5V 3A,
Size: Approx. 37x37mm/1.5x1.5inch, 30.5mm/1.2inch Mounting Hole
Weight: Approx. 10.2 g
FD 65A L431 BLHeli_32 3-6S 4in1 ESC
CPU: STM32L431
BLHELI32 Firmware
Input Voltage: 3-6S Lipo
Steady Current: 65A
Peak Current: 75A
BEC: No
Supported Protocols: DSHOT1200 / 600/300/150.ONESHOT125 / 42.MultiShot
Size: Approx. 46x45x6mm/1.8x1.8x0.2in
Weight: Approx. 23.8 g

FD VTX
Output Power: PIT / 25mW / 50mW / 100mW / 200mW / 400mW
Control Mode: BFOSD Control（RX）/Button
Input: DC 7-28V
BEC: 5V-1A
Video System: NTSC / PAL
Antenna: MMCX
Frequency: 5.8GHz 6 Frequency Band 48 Channel. Raceband: 5362-5945 MHZ
Size: Approx. 36x36x5mm/1.42x1.42x0.20inch
Hole: Approx. 30.5x30.5mm/1.2x1.2inch
Weight: Approx. 5.2g
Package List:
1 x FD F7 Dual Flight Control
1 x FD 65A L431 Blheli_32 3-6S 4 In 1 ESC
1 x FD VTX
2 x Sticker
1 x Capacitor
1 x Bag of Screws
3 x Flexible Flat Cable
2 x Parameter Specification
2 x Cable (Black/Red)
1 x Cable Connector
1 x Connector Cover
1 x Adapter Connector Cable
1 x MMCX Pigtail Antenna
