BL3674 бесщеточный мотор комплект прочный профессиональная портативная рация с 120A ESC грузовик Водонепроницаемый 4 полюса Универсальный электронный для 1:10 машинка на радиоуправлении

Description:
4-pole 12-slot hi-torque motor design.
CNC machined 6061 T6 billet aluminum heatsink.
High purity copper winding maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.

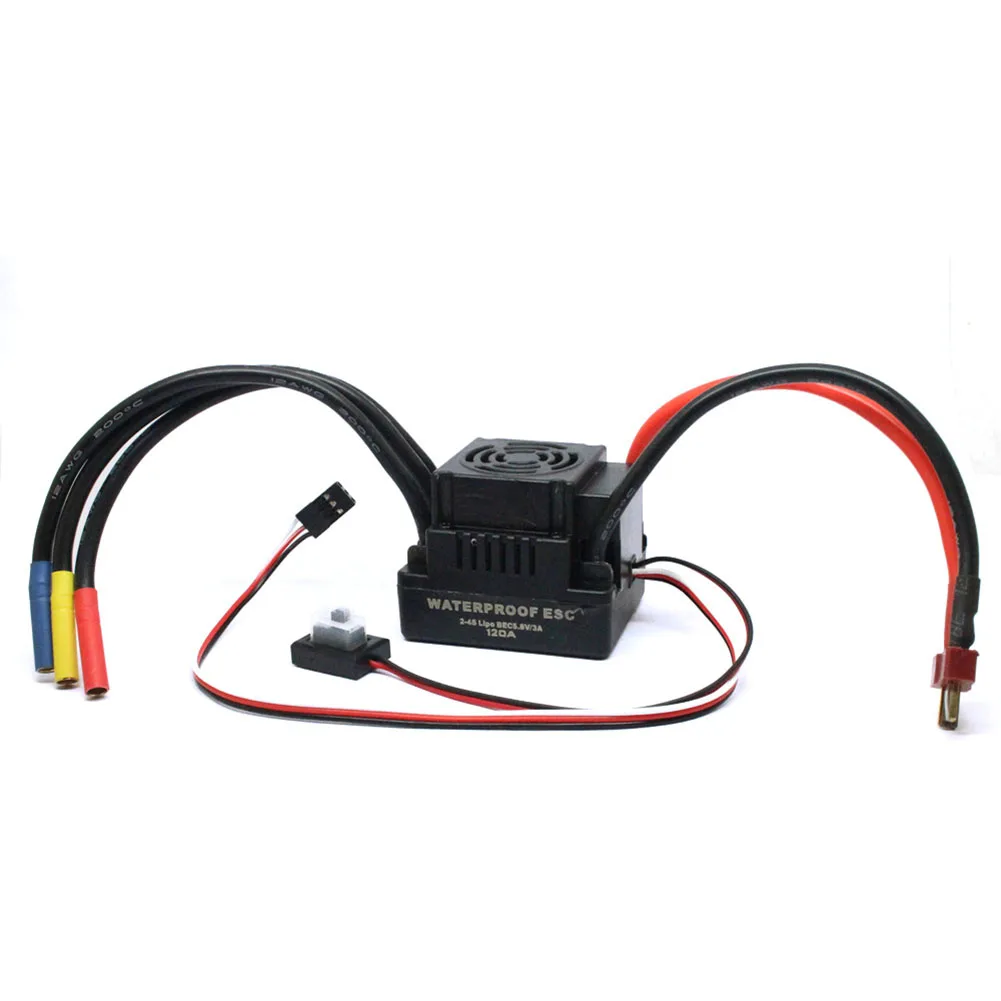

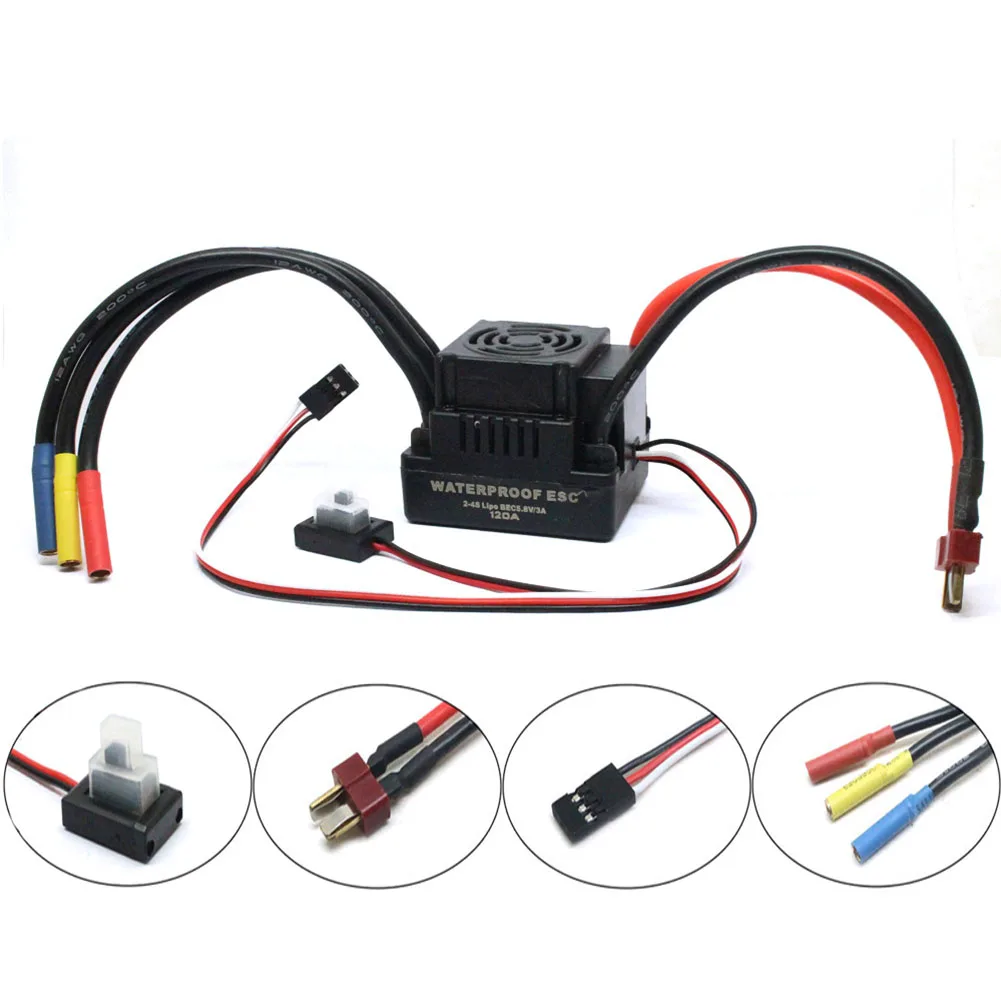

Waterproof ESC Description:
Bulid in 5.8V/3A BEC, supports program card to make adjustments
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
Waterproof, suitable for various condition races
Mutiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection

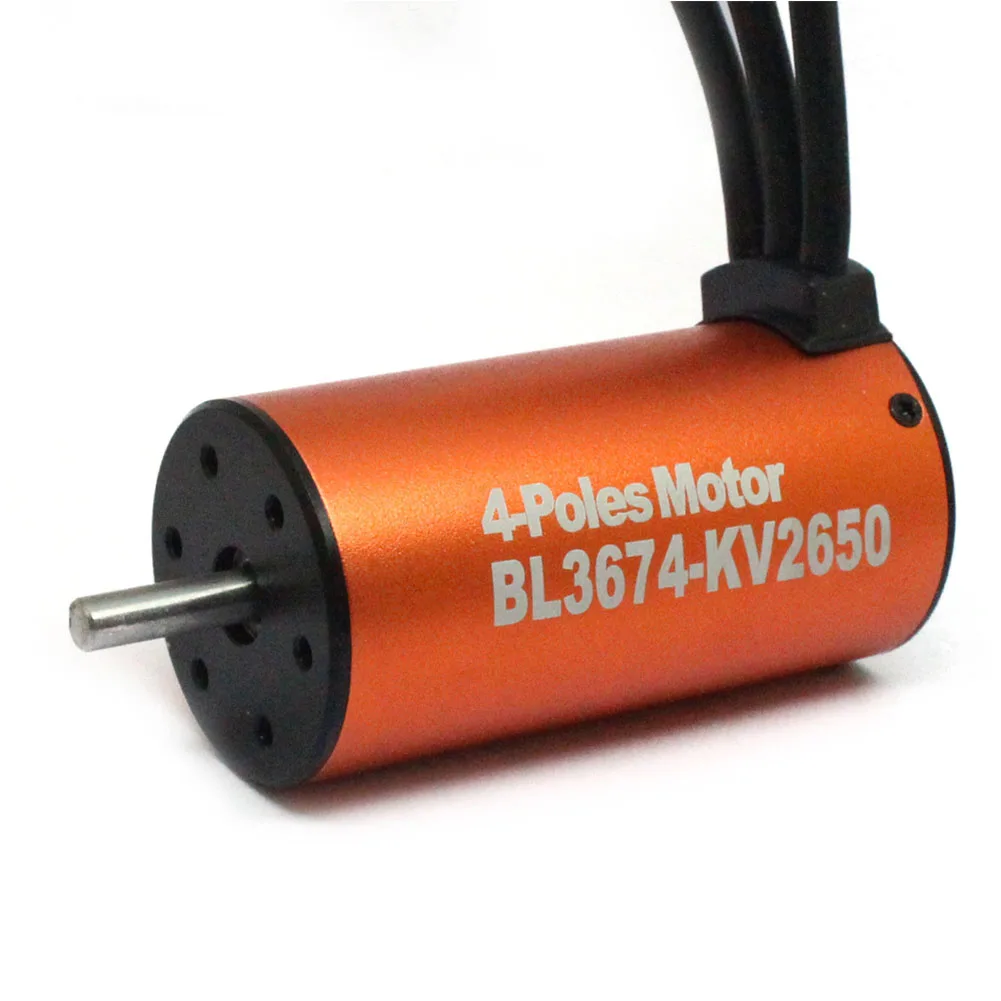

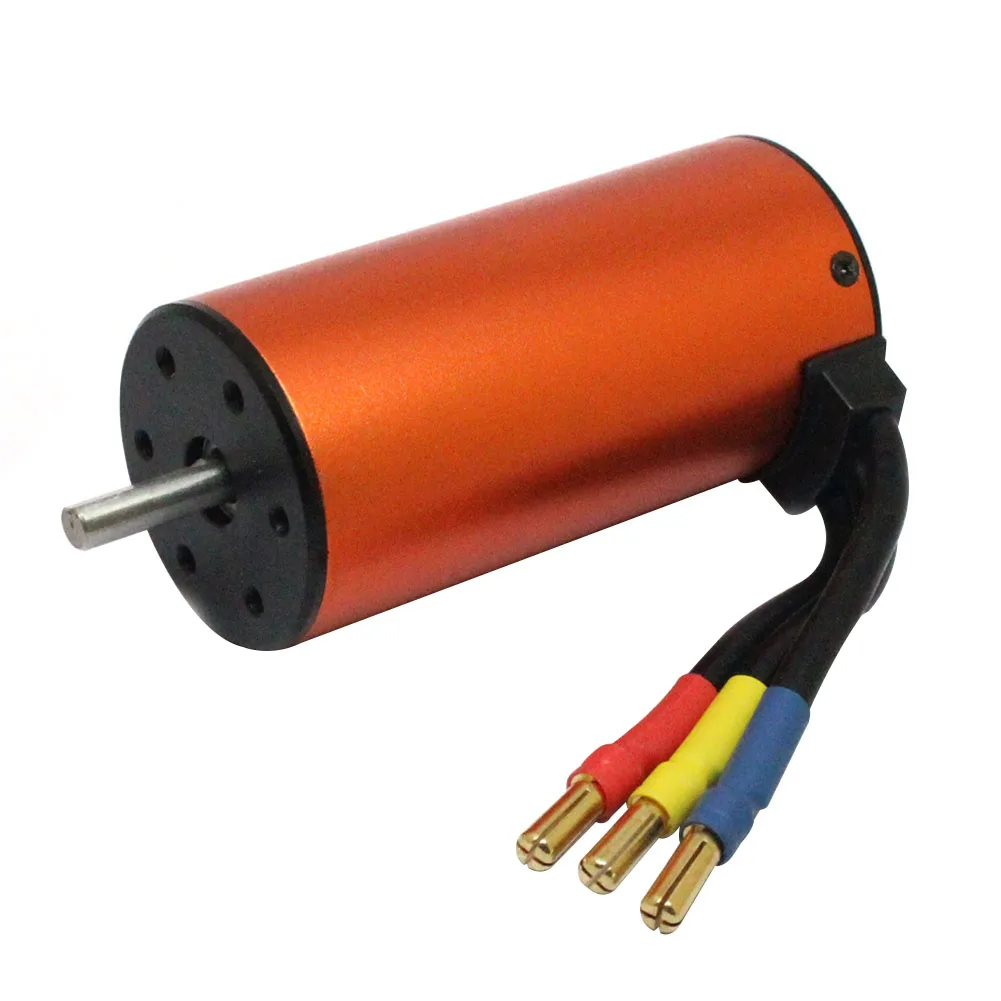

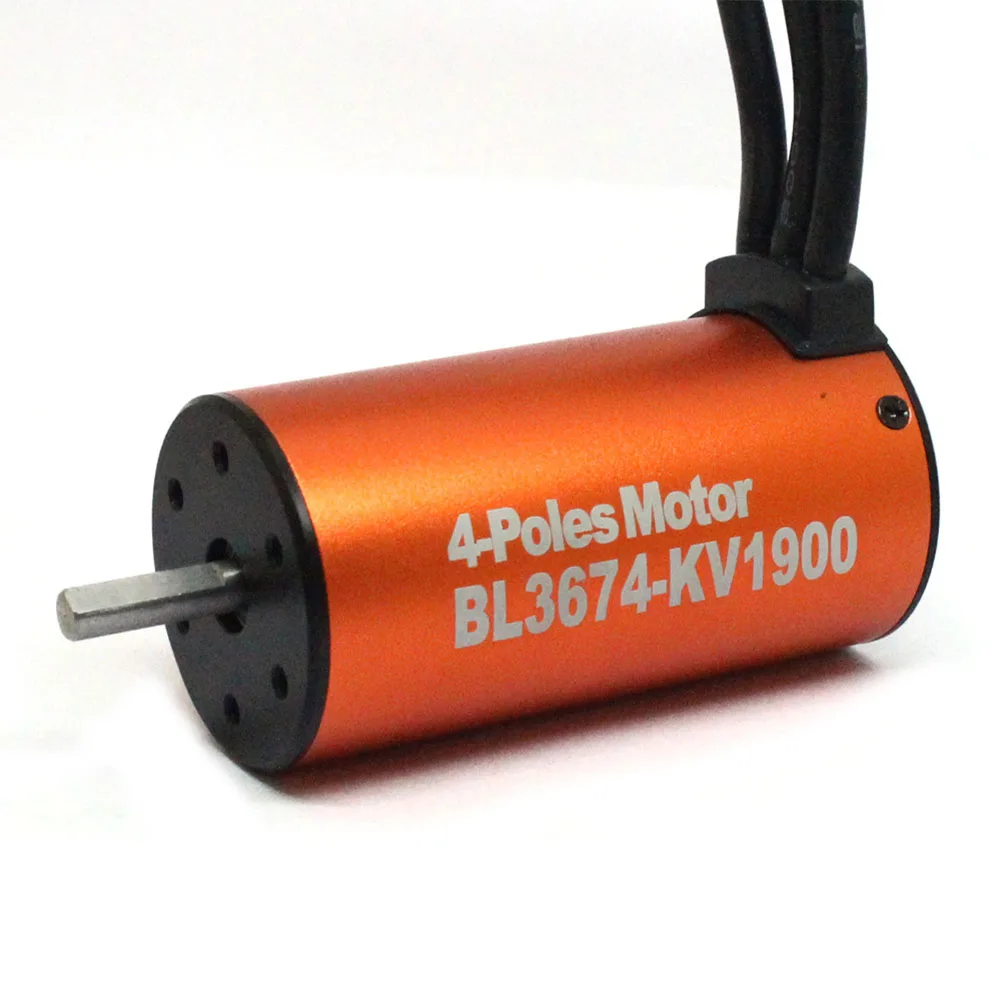

Brushless Motor Specifications:
Type: 1900KV, 2250KV, 2650KV
Model: BL3674
Color: As the picture
Max Voltage: Watts: 1800W, 1900W, 2000W
Max Amps: 120A
Rotor Poles: 4
Max RPM: 50000
Shaft(mm):￠5.0
Diameter: 35.8mm
Length of Extend Shaft: 15mm
Length: 74mm
Connector: 4.0mm Gold Plug
Dimensions(L x W x H): 74 x 36 x 36mm
Fitment: Fit RC Car 120A ESC, Fit1/10 RC Car

Waterproof ESC Specifications:
Item name: waterproof ESC
Continue current: 120A
Burst current: 600A
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 53 * 43 * 41mm
Program Card Specifications:Operating mode: positive and negative with pre-fabricated brake
Motor rotation direction: positive rotation
Start mode: level 4
Minimum forward strength: 7%
Minimum backing strength: 7%
Maximum backing strength: 49%
Initial braking intensity: 5%
Maximum braking strength: 100%
Braking force: 0%
Neutral range: 3.3%
Low voltage protection threshold: 3.1V
Low voltage protection: yes
Reverse maximum throttle stroke: 1.1ms
Forward maximum throttle stroke: 1.9ms
Synchronous rectification: off
Size: 82x55x12mmFit RC Car 35A 60A 80A 120A ESC

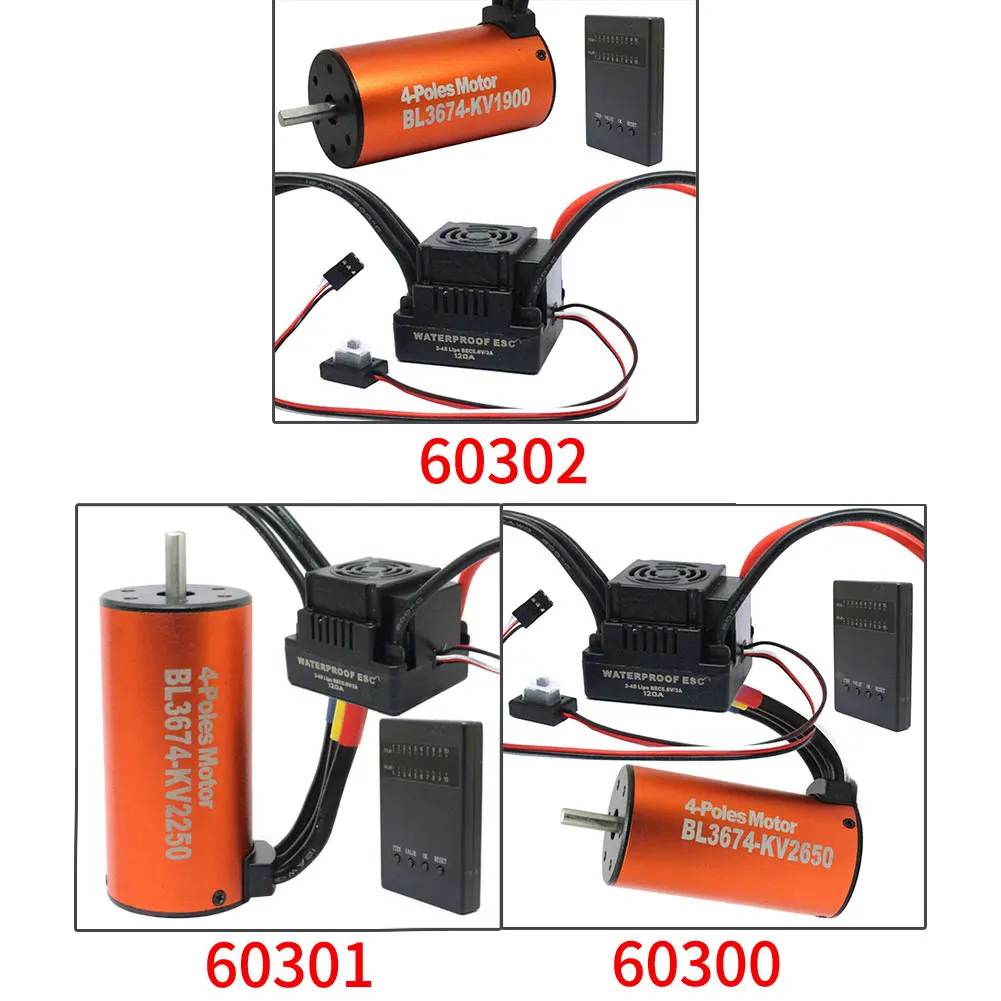

Package included:
1 x BL3674 motor
1 x Waterproof 120A Car Brushless ESC
1 x Program Card
